Overview
Comfortable anchoring without rolling. The SWI-TEC stabilizer reduces boat movements up to 50% and is recommended to improve comfort at anchor, reduce seasickness and provide a peaceful anchoring experience.

Key benefits

• Reduces rolling movements by up to 50% (actual effectiveness depends on vessel type, size, weight, number of stabilizers used and sea/wave conditions).
• Especially recommended for seasickness and longer stays at anchor.
• Simple, passive system – no electricity required.
• Foldable design and delivered with a durable, water-repellent storage bag for compact stowage.
• Production in Europe; designed for marine use with corrosion resistant materials.

How it works

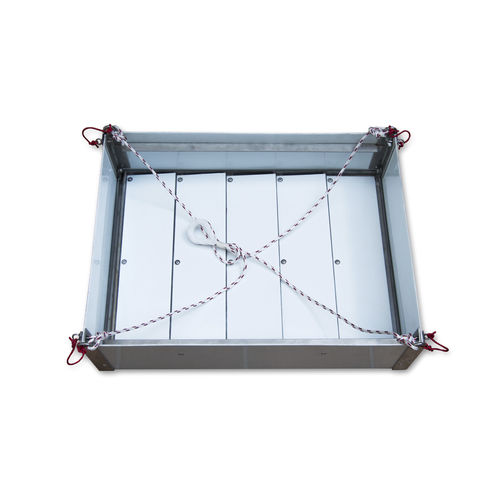

The stabilizer is a box-shaped device with movable plates that is lowered into the water. During downward motion plates open to let water pass; during upward motion plates close and dampen the movement. The surface area and design act as a braking/valve system in the water to reduce side-to-side roll.

Installation & positioning

• Easy installation: secured with a single external line slightly deeper than the hull (depth depends on sea conditions). Can be positioned on the side, bow or stern depending on wave direction.
• Correct positioning: place slightly deeper than the hull so the stabilizer does not touch the hull but displaces enough water.
• Depending on boat weight, one or several stabilizers may be used; mounting two on the same side is recommended for increased effect.

Storage
Foldable elements allow the device to be stored compactly in the supplied water-repellent bag when not in use.

Limitations & cautions

• Not recommended in very rough seas or extremely high waves due to high loads on cleats or railings.
• Less effective if placed too close to the hull.
• Possibility of contact with underwater obstacles (seagrass, wreckage) or interference with anchor chain when installed at the bow.
• Only for use when stationary at anchor or in port; never while underway.

Maintenance & safety

• Ensure mounting point is strong enough to handle forces involved.
• Regularly inspect connecting elements, loops and screws for damage or corrosion.
• Rinse with fresh water after use to remove salt deposits.
• Only pack into the storage bag once completely dry to avoid moisture damage.

Additional information
Refer to the weight/boat-size chart to determine how many stabilizers your boat requires (chart provided on product page).

Caractéristiques / spécifications techniques

• Dimensions (in use): 45 x 60 x 19 cm; Folded (for storage): 45 x 60 x 6 cm
• Weight: 8,2 kg
• Material: Stainless steel (V4A / AISI 316) and plastic — corrosion-resistant, marine grade
• Storage bag: included, water-repellent
• Designed for boats up to a maximum of 25 tons (depending on number of units used)
• Operation: passive fin/valve system with movable plates that open on downward motion and close on upward motion
• Spare parts: all spare parts available from manufacturer/factory
• Typical price (shop display): see product page for current price and export (tax-excluded) price
