户外照明射灯 SMARTSPOT 50 ON-OFF

内部照明用船用灯光

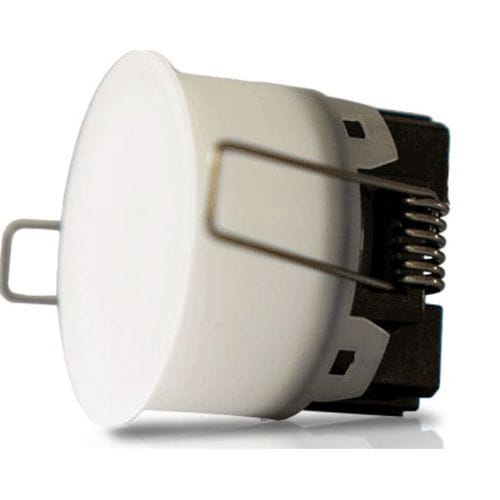

Présentation The ultimate recessed downlight generation. Embedded electronics, latest generation LED, smart. Ghost shape: thanks to an adaptive shape it can be installed both with an additional classic frame or totally without frames, offering the possibility of being invisible when turned off. The frame can be customized and has to be ordered separately if required.
Optique et lumière The use of a technological material for the lens delivers an incredibly homogeneous enlightened surface; when the downlight is turned off it completely hides all the internal components. Light emitted by 8 OSRAM LEDs arranged to optimize luminous flux. Standard white temperature 3.000K (warm white); other white temperatures available on request.
Matériaux et résistance à la corrosion Total plastic body eliminates the risk of galvanic currents generation and potential corrosion, making the downlight safe for marine use and keeping appearance as new.
Fonctions et protections Fade in / fade out effect on ON and OFF to soften light change. True deep dimming from 100% to 0% (not simple PWM). Overheating protection that switches the system off to prevent damage. Protections include polarity reverse, overheating, short circuits, electrostatic charges and voltage peaks. Automotive-qualified electronic components and automatic shut-off system against overvoltages.
Électronique et alimentation Suitable for 24Vdc systems; can be used on 230Vac systems by installing an additional power supply unit. Internal driver. Electronics resistant to battery voltage peaks; device automatically shuts down from 32Vdc up to 60Vdc to prevent damages.
Étanchéité et installation IP68 waterproof grade: can be installed in internal rooms and external corridors. Reduced encumbrance: total height just 44.4 mm allowing installation where spaces are limited. Projector dimensions: Diameter 50 mm x thickness 44,4 mm.
Performance Luminous intensity: 400 lm (WHITE). Output power: 4,8 W. Absorption: Max 0,20 A @ 24 Vdc.
Conformités RoHS 2011/65/EU and Electromagnetic compatibility 2014/30/EU compliance. EU Declaration of Conformity available as product document.

Caractéristiques / spécifications techniques

• Product code: SLMXWHI01
• Model / denomination commerciale: SMARTSPOT 50 ON-OFF
• Number of LEDs: 8 OSRAM LEDs
• Luminous intensity: 400 lm (WHITE)
• Output power: 4,8 W
• Absorption: Max 0,20 A @ 24 Vdc
• Power supply: 24 Vdc (suitable for 230 Vac with external PSU)
• Light colour: White 3.000 K (OSRAM) — other white temperatures on request
• Driver type: internal
• Dimmable: Yes, true deep dimming (0%–100%)
• Fade in / Fade out effect: Yes
• Protections: polarity reverse, overheating, short circuits, electrostatic charges, voltage peaks
• Resistance to voltage peaks: 60 Vdc (automatic shutdown from 32Vdc up to 60Vdc)
• Waterproof: IP68
• Lens material: Technological plastic
• Heatsink material: Dissipative plastic
• Body material: Total plastic (prevents galvanic currents and corrosion)
• Projector dimensions: Diameter 50 mm x thickness 44,4 mm
• System typology: Standard
• Operating modes: ON/OFF and dimming
• Compliances: RoHS 2011/65/EU; EMC 2014/30/EU
